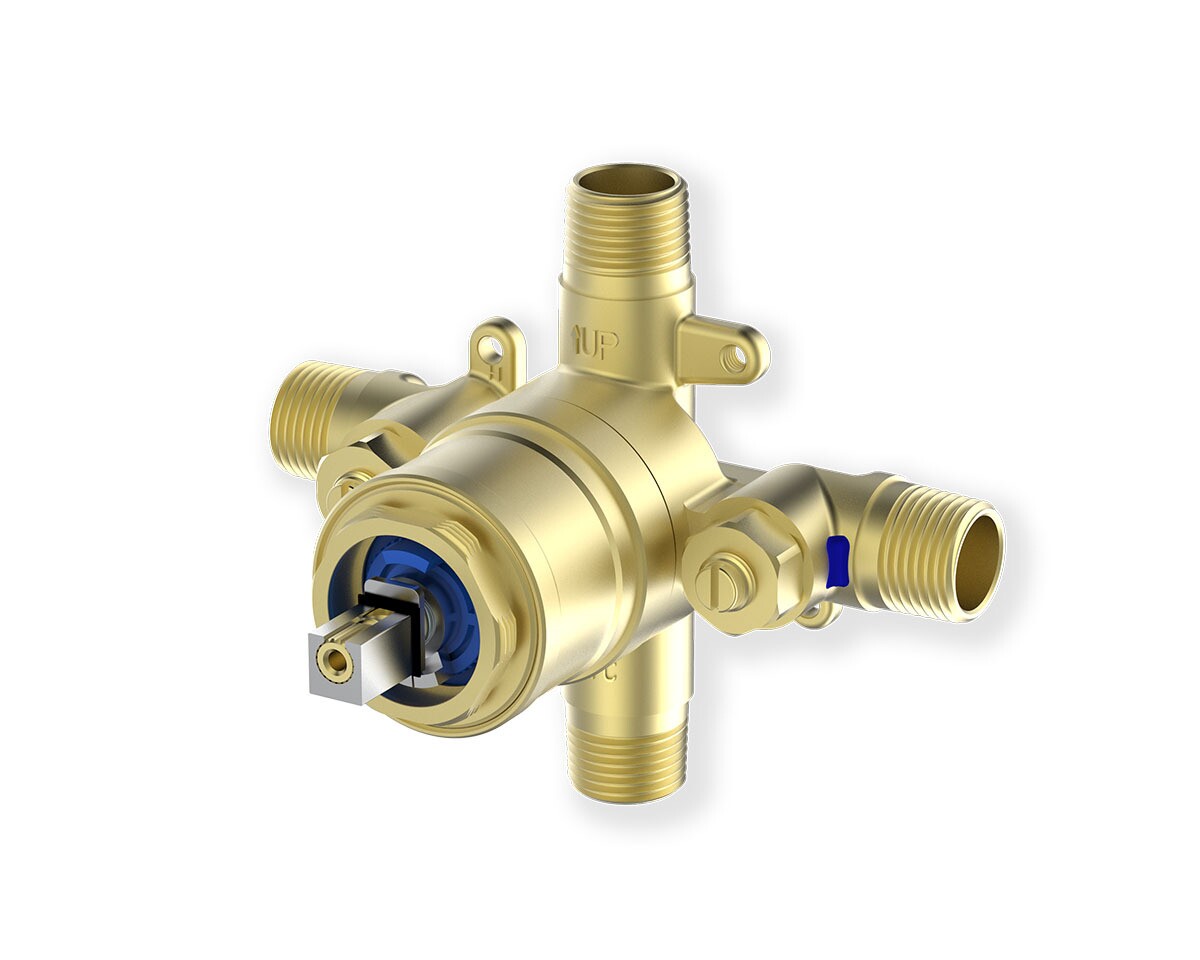

Pressure Balancing Two Way Valve (Single Handle)

F1002B

The fluid pressure balancing valve is the heart of our 2-Way shower systems. This Valve uses a single handle to simply divert the water from one fixture to the next.



$229

Colour / finish

No finishes
Find a distributor

specifications

Specs

  • This valve is ADA compliant and universally designed, ensuring it can be used by everyone.
  • Made of forged heavy brass.
  • Pressure balancing with built-in 2-way diverter ceramic cartridge that ensures anti-scald operation with lifelong trouble free service.
  • Built-in anti-back flow device helps prevent cross flow.
  • Single lever handle operation allows for diverting and temperature control.
  • Integral stop valves for easy maintenance.
  • Three inlet connection options: 1/2” CxC soldering & 1/2” NPT thread or PEX or PEX-W
  • Adjustable installation depth from 2-3/8” (60mm) to 3-1/8” (80mm)
  • This valve enables back-to-back installation.
  • A Bubble level is provided for easy and level installation.
  • A Mud guard is also provided to protect the trim finish while installing.
  • This 2-way valve works differently than our 2-handle F1012B. To review the differences, click here
  • A wide selection of trim kits are sold separately.

Finishes

No finishes

Warranty

*Limited Lifetime Faucet Warranty against material and manufacturing defects for residential use.

 2 Year Limited Warranty on all industrial, commercial and business use.

* Full Warranty

For California Residents: Prop 65
